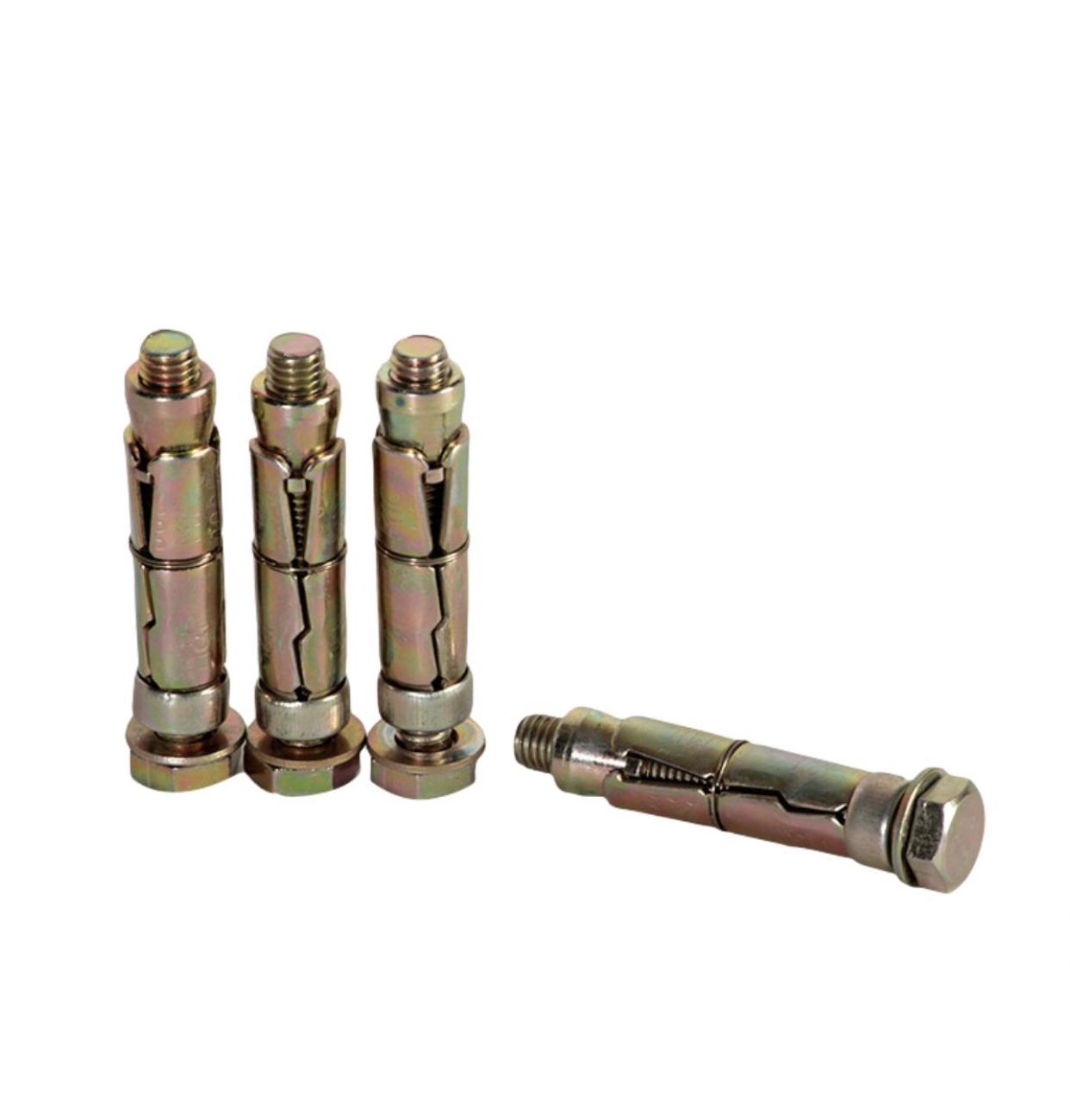

10 mm Shield Anchor – Zinc‑Plated Expansion Fixing, Box of 10 (M10)

These 10 mm shield anchors (also known as M10 loose-bolt shield anchors) are heavy-duty, torque-controlled expansion fixings designed for secure fastening into concrete, solid brick, and stone. Featuring a zinc-plated steel shield and high-tensile bolt, they expand three-ways when tightened, providing robust anchorage ideal for handrails, shelving, mounting brackets, and industrial fixtures. Sold in a convenient box of 10, they offer professional-grade performance for contractors and DIY enthusiasts.




General/Technical Specifications

• Brand/Type: Shield Anchor – Loose‑Bolt Expansion Anchor

• Common Reference Codes: ASHOM10, ALB1010, PSM10SS

• Warranty: Typically limited (varies by supplier/manufacturer)

• Origin: Usually China or EU manufacturer

• Tightening Torque: ~22–27 Nm for M10 anchors

• Characteristic Load (Concrete, C20/25): Tensile ~20 kN, Shear ~11 kN

• Minimum Embedment (Concrete): ~60 mm

• Minimum Hole Depth: ~65 mm
